Block Reference

About This Reference

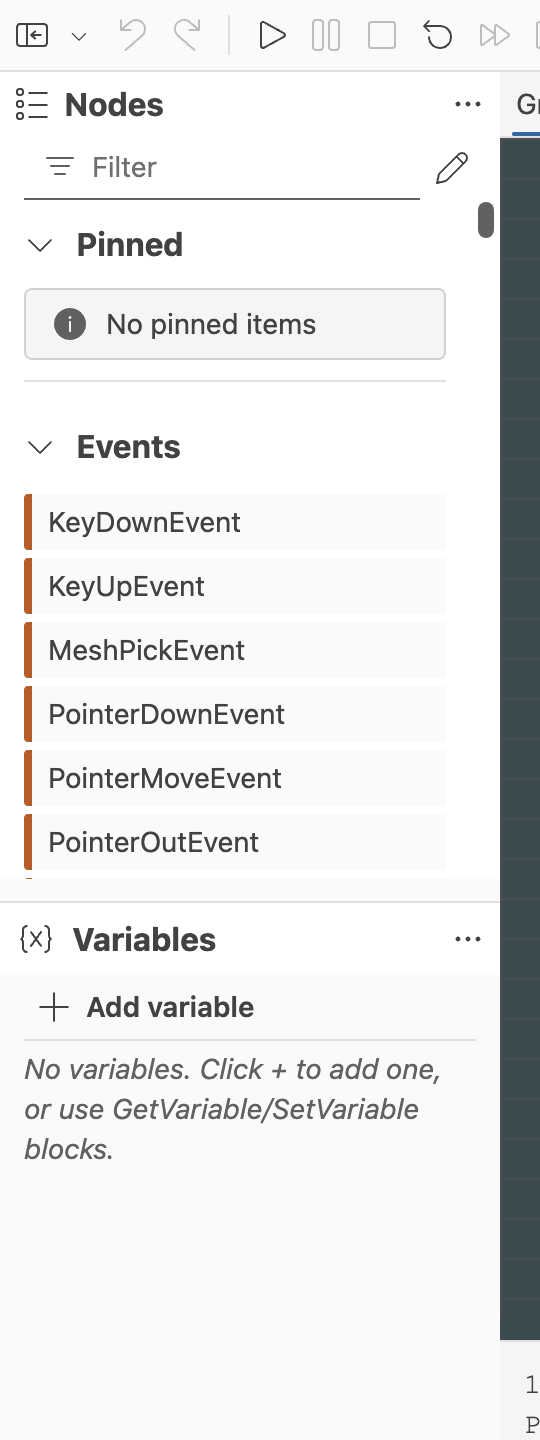

This page is a first-pass reference for the current block surface of the Flow Graph Editor. It is organized by the same broad families used by the editor palette.

The descriptions here are intentionally short. Their purpose is to help you identify the right block quickly, not to replace the runtime Flow Graph documentation.

For deeper write-ups on the largest authoring families, continue with Event Blocks, Control Flow Blocks, Animation Blocks, Physics Blocks, Audio Blocks, Data Access Blocks, and Utility Blocks.

Events

Block	Description
SceneReadyEvent	Fires once the scene is ready for graph interaction.
SceneTickEvent	Fires every scene tick, making it useful for per-frame logic.
MeshPickEvent	Fires when a configured mesh is picked.
PointerDownEvent	Fires when a pointer-down interaction occurs.
PointerUpEvent	Fires when a pointer-up interaction occurs.
PointerMoveEvent	Fires while the pointer moves.
PointerOverEvent	Fires when the pointer moves over a target.
PointerOutEvent	Fires when the pointer leaves a target.
ReceiveCustomEvent	Starts logic in response to a named custom event and payload.
SendCustomEvent	Emits a named custom event with optional payload data.

Control Flow

Block	Description
Branch	Routes execution based on a boolean condition.
ForLoop	Repeats execution over a numeric range with a loop index.
WhileLoop	Repeats execution while a condition remains true.
Switch	Routes execution to case-specific outputs.
Sequence	Fires multiple outputs in sequence from a single trigger.
MultiGate	Distributes repeated triggers across multiple outputs according to gate state.
FlipFlop	Alternates between outputs on successive activations.
DoN	Allows execution only a limited number of times.
WaitAll	Waits for multiple required signals before continuing.
SetDelay	Schedules execution to continue after a delay.
CancelDelay	Cancels a previously scheduled delay.
CallCounter	Counts how many times the block has been triggered.
Debounce	Suppresses rapid repeat triggers until activity settles.
Throttle	Limits how often execution is allowed to continue.

Animation

Block	Description
PlayAnimation	Starts a configured animation group.
StopAnimation	Stops the configured animation group.
PauseAnimation	Pauses a running animation group.
Interpolation	Interpolates values or states over time.

Physics

Physics Events

Block	Description
PhysicsCollisionEvent	Fires when the configured physics body collides and exposes collision details.

Physics Actions

Block	Description
ApplyForce	Applies a continuous force at a world-space location.
ApplyImpulse	Applies an instantaneous impulse to a physics body.
SetLinearVelocity	Sets the body's linear velocity directly.
SetAngularVelocity	Sets the body's angular velocity directly.
SetPhysicsMotionType	Switches the body between supported motion types.

Physics Data

Block	Description
GetLinearVelocity	Reads the current linear velocity of a physics body.
GetAngularVelocity	Reads the current angular velocity of a physics body.
GetPhysicsMassProperties	Reads mass, center of mass, and inertia information.

Audio

Audio Actions

Block	Description
PlaySound	Starts audio playback with configurable playback options.
StopSound	Stops the sound immediately.
PauseSound	Pauses a playing sound or resumes a paused one.
SetSoundVolume	Sets the sound's volume.

Audio Events

Block	Description
SoundEndedEvent	Fires when a sound finishes playback.

Audio Data

Block	Description
GetSoundVolume	Reads the sound's current volume.
IsSoundPlaying	Returns whether the sound is currently playing or starting.

Math

Constants

Block	Description
E	Outputs Euler's number.
PI	Outputs $\pi$.
Inf	Outputs an infinity value.
NaN	Outputs a not-a-number value.
Random	Outputs a random numeric value.

Arithmetic

Block	Description
Add	Adds two values.
Subtract	Subtracts one value from another.
Multiply	Multiplies values together.
Divide	Divides one value by another.
Modulo	Returns the remainder of a division.
Negation	Negates the input value.
Abs	Returns the absolute value.
Sign	Returns the sign of the input.
Min	Returns the smaller of the inputs.
Max	Returns the larger of the inputs.
Clamp	Restricts a value to a min/max range.
Saturate	Clamps a value to the 0 to 1 range.
MathInterpolation	Interpolates between numeric values.
Power	Raises a value to a power.
SquareRoot	Returns the square root of the input.
CubeRoot	Returns the cube root of the input.

Rounding

Block	Description
Floor	Rounds down to the nearest lower integer.
Ceil	Rounds up to the nearest higher integer.
Round	Rounds to the nearest integer.
Trunc	Removes the fractional component.
Fract	Returns the fractional component only.

Trigonometry

Block	Description
Sin	Returns the sine of the input.
Cos	Returns the cosine of the input.
Tan	Returns the tangent of the input.
ASin	Returns the inverse sine.
ACos	Returns the inverse cosine.
ATan	Returns the inverse tangent.
ATan2	Returns the angle derived from two directional components.
Sinh	Returns the hyperbolic sine.
Cosh	Returns the hyperbolic cosine.
Tanh	Returns the hyperbolic tangent.
ASinh	Returns the inverse hyperbolic sine.
ACosh	Returns the inverse hyperbolic cosine.
ATanh	Returns the inverse hyperbolic tangent.
DegToRad	Converts degrees to radians.
RadToDeg	Converts radians to degrees.

Logarithmic

Block	Description
Exponential	Raises Euler's number to the given power.
Log	Returns the natural logarithm.
Log2	Returns the base-2 logarithm.
Log10	Returns the base-10 logarithm.

Comparison

Block	Description
Equality	Compares two values for equality.
LessThan	Returns whether the first value is less than the second.
LessThanOrEqual	Returns whether the first value is less than or equal to the second.
GreaterThan	Returns whether the first value is greater than the second.
GreaterThanOrEqual	Returns whether the first value is greater than or equal to the second.
IsNaN	Returns whether the input is NaN.
IsInf	Returns whether the input is infinite.
Conditional	Selects between outputs based on a condition.

Vector And Matrix

Block	Description
Length	Returns the magnitude of a vector-like input.
Normalize	Normalizes a vector input.
Dot	Computes the dot product.
Cross	Computes the cross product.
Rotate2D	Rotates a 2D value by an angle.
Rotate3D	Rotates a 3D value using a rotation input.
Transpose	Transposes a matrix.
Determinant	Computes the determinant of a matrix.
InvertMatrix	Inverts a matrix when possible.
MatrixMultiplication	Multiplies matrices together.

Bitwise

Block	Description
BitwiseAnd	Applies a bitwise AND operation.
BitwiseOr	Applies a bitwise OR operation.
BitwiseXor	Applies a bitwise XOR operation.
BitwiseNot	Inverts the bits of the input.
BitwiseLeftShift	Shifts bits left by the given amount.
BitwiseRightShift	Shifts bits right by the given amount.
LeadingZeros	Counts leading zero bits.
TrailingZeros	Counts trailing zero bits.
OneBitsCounter	Counts the number of set bits.

Data Conversion

Block	Description
CombineVector2	Builds a Vector2 from component inputs.
CombineVector3	Builds a Vector3 from component inputs.
CombineVector4	Builds a Vector4 from component inputs.
ExtractVector2	Breaks a Vector2 into its components.
ExtractVector3	Breaks a Vector3 into its components.
ExtractVector4	Breaks a Vector4 into its components.
CombineMatrix	Builds a matrix from matrix-oriented inputs.
ExtractMatrix	Extracts matrix-oriented data from a matrix input.
TransformVector	Transforms a vector using a transform input.
TransformCoordinates	Transforms coordinates through a matrix or transform context.
TransformCoordinatesSystem	Converts coordinates between supported coordinate systems.
CombineMatrix2D	Builds a 2D-oriented matrix representation.
CombineMatrix3D	Builds a 3D-oriented matrix representation.
ExtractMatrix2D	Extracts 2D transform components.
ExtractMatrix3D	Extracts 3D transform components.
Conjugate	Computes the conjugate of a supported input such as a quaternion.
AngleBetween	Computes the angle between compatible directional inputs.
QuaternionFromAxisAngle	Builds a quaternion from an axis-angle representation.
AxisAngleFromQuaternion	Extracts axis-angle data from a quaternion.
QuaternionFromDirections	Builds a quaternion from directional inputs.
MatrixDecompose	Decomposes a matrix into transform components.
MatrixCompose	Composes a matrix from transform components.
BooleanToFloat	Converts a boolean to a float representation.
BooleanToInt	Converts a boolean to an integer representation.
FloatToBoolean	Converts a float to a boolean representation.
IntToBoolean	Converts an integer to a boolean representation.
IntToFloat	Converts an integer to a float.
FloatToInt	Converts a float to an integer.

Data Access

Block	Description
Constant	Outputs a configured constant value of a chosen type.
GetProperty	Reads a property from a target object.
SetProperty	Writes a property value to a target object.
GetVariable	Reads a graph variable.
SetVariable	Writes one or more graph variables.
GetAsset	Retrieves a named asset from the loaded scene.
JsonPointerParser	Reads structured data using a JSON pointer path.
ArrayIndex	Returns the item at a configured array index.
IndexOf	Returns the index of an item inside a collection.
DataSwitch	Routes or selects data based on configured cases.

Keyboard

Block	Description
IsKeyPressed	Reports whether a specific key is currently pressed.

Utility

Block	Description
ConsoleLog	Writes a value or message to the console for debugging.
Easing	Applies a supported easing function to a value.
BezierCurveEasing	Evaluates a Bezier-based easing curve.
Context	Exposes flow-graph context data to the graph.
CodeExecution	Bridges a graph step to a code-driven execution hook.
FunctionReference	Holds or exposes a function reference for other graph logic.
DebugBlock	Passes data through while recording and displaying observed values.

Keeping This Reference Fresh

This page should evolve together with the palette.

• Add new blocks as they land in the editor.
• Keep descriptions short and behavior-oriented.
• Split very large families into dedicated pages if a family outgrows a single section.
