Babylon 3D GUI

How To Use Babylon 3D GUI

The Babylon.js 3D GUI library is an extension you can use to generate 3D interactive user interfaces.

The latest version can be found on our CDN at https://cdn.babylonjs.com/gui/babylon.gui.js.

And the source code is available on the main Babylon.js repo: https://github.com/BabylonJS/Babylon.js/tree/master/packages/dev/gui.

Introduction

Babylon.GUI uses meshes to create an interactive user interface that is fully integrated into your scene.

GUI3DManager

To begin with 3D GUI, you need to instantiate a GUI3DManager which will be responsible for connecting all the controls together:

import { GUI3DManager } from "@babylonjs/gui/3D/gui3DManager";
const manager = new GUI3DManager(scene);

The manager only requires the scene to work on. Once instantiated, the manager will create a utility layer which is a specific child scene that will host all the meshes used to render the controls. This way, your main scene won't get populated by the utility meshes.

You can reach the utility layer with manager.utilityLayer.

Once you have a manager, you can start adding controls with manager.addControl(control). All controls will be added to the manager.rootContainer.

Please also note that the following functions are available:

• containsControl(): Gets a boolean indicating if the given control is in the root child list.
• removeControl(): Removes a control from the root child list.

The manager also supports a scaling option, manager.useRealisticScaling, that scales all added controls to a size more comfortable for XR interactions. Alternatively, a custom scaling can be applied to all controls by setting the value of manager.controlScaling. Scaling effects done in these ways can be overridden by updating the control's scale normally. Setting either of these values will apply the change to all existing and future controls the manager owns.

Containers

A container is used to organize controls in the scene. The base class for all containers is the Container3D class. The manager.rootContainer is a Container3D object.

All containers provide the following functions to handle controls:

• addControl(): Adds a control to the children of this container
• containsControl(): Gets a boolean indicating if the given control is in the root child list
• removeControl(): Removes a control from the root child list

By default, all containers update their layout every time you add a new control to them. But you can optimize this behavior if you plan to add multiple controls in a row with container.blockLayout = true:

import { Button3D } from "@babylonjs/gui/3D/controls/button3D";
panel.blockLayout = true;
for (let index = 0; index < 30; index++) {
    const button = new Button3D("click me");
    panel.addControl(button);
}
panel.blockLayout = false;

The Container3D class will do nothing regarding layout of its controls. You need to use one of its children to get a specialized layout mechanism.

All specialized containers must implement the following function to provide a layout mechanism:

• _arrangeChildren(): This function is called every time a new control is added. This is where child classes can decide how to organize controls

StackPanel

The StackPanel container can be used to stack items either horizontally or vertically:

import { StackPanel3D } from "@babylonjs/gui/3D/controls/stackPanel3D";
const panel = new StackPanel3D();
panel.isVertical = true;

The panel will automatically arrange its content every time you add a new control.

You can specify the distance between elements with panel.margin = 0.02.

See it in action here: 3D GUI StackPanel

VolumeBasedPanel

VolumeBasedPanels are containers used to distribute items on the surface of a volume (like a sphere or cylinder).

The panels automatically arrange their content every time you add a new control.

The panels can either be row or column first depending on which property you use:

panel.columns = 5; // The panel will automatically compute the number of rows based on number of child controls

or

panel.rows = 5; // The panel will automatically compute the number of columns based on number of child controls

By default a VolumeBasedPanel is set up with panel.columns = 10;

You can specify the distance between elements with panel.margin = 0.02.

You can also control how each cell is oriented:

SpherePanel

The SpherePanel container can be used to dispatch items on the surface of a sphere:

import { SpherePanel } from "@babylonjs/gui/3D/controls/spherePanel";
const panel = new SpherePanel();
panel.radius = 5;

The radius property is used to define the radius of the hosting sphere.

See it in action here: 3D GUI SpherePanel

Expand

CylinderPanel

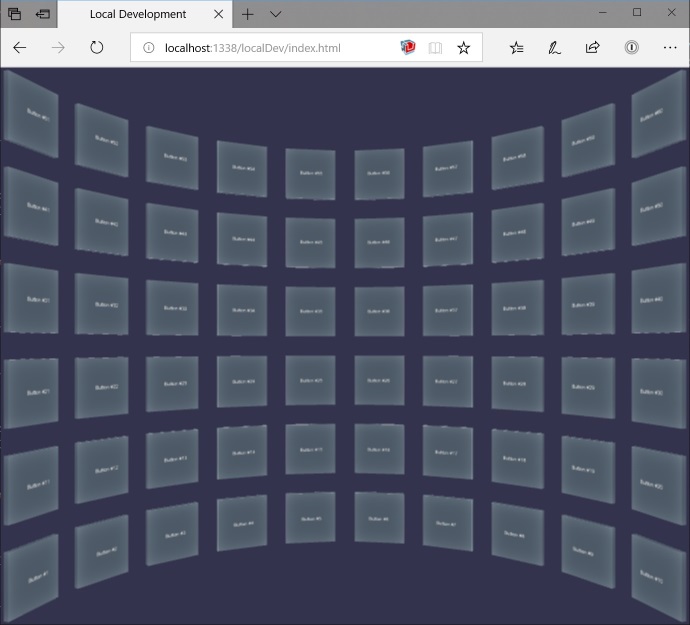

The CylinderPanel container can be used to distribute items on the surface of a cylinder:

import { CylinderPanel } from "@babylonjs/gui/3D/controls/cylinderPanel";
const panel = new CylinderPanel();
panel.radius = 5;

The radius property is used to define the radius of the hosting cylinder.

See it in action here: 3D GUI CylinderPanel

Expand

PlanePanel

The PlanePanel container can be used to distribute items on the surface of a plane:

import { PlanePanel } from "@babylonjs/gui/3D/controls/planePanel";
const panel = new PlanePanel();

See it in action here: 3D GUI PlanePanel

Expand

ScatterPanel

The ScatterPanel container can be used to dispatch items using a randomized planar mapping:

import { ScatterPanel } from "@babylonjs/gui/3D/controls/scatterPanel";
const panel = new ScatterPanel();
panel.iterations = 100;

The iterations property is used to define the number of iterations used to scatter the controls (100 by default).

Expand

See it in action here: 3D GUI ScatterPanel

Controls

All controls inherit from the Control3D class which provides a set of basic features:

• position: Gets or sets the control position in world space
• scaling: Gets or sets the control scaling in world space
• parent: Gets or sets the parent container
• isVisible: Gets or sets a boolean indicating if the control is visible
• node: Gets the transform node used by this control
• mesh: Gets the mesh used to render this control

You can attach a control to a mesh or transform node from your scene with:

control.linkToTransformNode(anchor);

This way the control will always follow the linked node or mesh. Please note that in this case, the position and scaling properties are considered local to the new parent node or mesh. When linking a control to a transform node, please make sure that the control was first added to a container or to the root manager.

Some observables are also available to help track control state:

• onPointerEnterObservable: An event triggered when pointer enters the control
• onPointerOutObservable: An event triggered when the pointer moves out of the control
• onPointerDownObservable: An event triggered when the pointer taps the control
• onPointerUpObservable: An event triggered when pointer is up
• onPointerClickObservable: An event triggered when a control is clicked on (with a mouse)
• onPointerMoveObservable: An event triggered when the pointer moves over the control

All controls can also be the target of behaviors so they expose the associated properties and functions:

• behaviors: Gets the list of attached behaviors
• addBehavior(): Attach a behavior to the control
• removeBehavior(): Remove an attached behavior
• getBehaviorByName(): Gets an attached behavior by name

All controls can also define a callback for when a specific event occurs. These callbacks let the user define an animation for the control. Here is the list of available callbacks:

• pointerEnterAnimation: Callback used to start pointer enter animation
• pointerOutAnimation: Callback used to start pointer out animation
• pointerDownAnimation: Callback used to start pointer down animation
• pointerUpAnimation: Callback used to start pointer up animation

All these callbacks are empty by default and will be implemented by specialized controls.

Button3D

Button3D is a class used to create 3D buttons.

A button is a control with default animations for enter/out/down and up events. It is based on 2D GUI content.

You can specify the content through the content property and set it to any regular 2D GUI content:

import { TextBlock } from "@babylonjs/gui/2D/controls/textBlock";
import { Button3D } from "@babylonjs/gui/3D/controls/button3D";
const button = new Button3D("reset");
const text = new TextBlock();
text.text = "reset";
text.color = "white";
text.fontSize = 24;
button.content = text;

By default the Button3D control uses a 512x512 AdvancedDynamicTexture to render its content. You can use the following properties to change the texture resolution:

• contentResolution: Gets or sets the texture resolution used to render content (512 by default)
• contentScaleRatio: Gets or sets the texture scale ratio used to render content (2 by default)

See it in action here: 3D GUI Button3D Control

MeshButton3D

This class is used to create an interactive object that uses a mesh from the current scene for rendering.

import { MeshButton3D } from "@babylonjs/gui/3D/controls/meshButton3D";
const pushButton = new MeshButton3D(mesh, "pushButton");

Once created, you can use the new MeshButton3D to add animations:

import { Color3 } from "@babylonjs/core/Maths/math.color";
pushButton.pointerEnterAnimation = () => {
    mesh.material.albedoColor = hoverColor;
};
pushButton.pointerOutAnimation = () => {
    mesh.material.albedoColor = new Color3(0.5, 0.19, 0);
};

See it in action here: MeshButton3D Demo

HolographicButton

The HolographicButton is a specialized button that mimics the Mixed Reality Toolkit holographic button.

An HolographicButton can be defined with two properties:

• text: Gets or sets text for the button
• imageUrl: Gets or sets the image URL for the button

Expand

See it in action here: 3D GUI HolographicButton Control

Please note that you can overwrite the default content but you need to do it after the call to addControl:

import { TextBlock } from "@babylonjs/gui/2D/controls/textBlock";
import { HolographicButton } from "@babylonjs/gui/3D/controls/holographicButton";
const button = new HolographicButton("reset");
panel.addControl(button);
// Must be done AFTER addControl in order to overwrite the default content
const text1 = new TextBlock();
text1.text = "Reset";
text1.color = "Red";
text1.fontSize = 48;
button.content = text1;

TouchHolographicButton

The TouchHolographicButton is a newer version of HolographicButton that is better suited for HoloLens 2 volumetric interactions.
It has the same use as HolographicButton:

import { TextBlock } from "@babylonjs/gui/2D/controls/textBlock";
import { TouchHolographicButton } from "@babylonjs/gui/3D/controls/touchHolographicButton";
const button = new TouchHolographicButton("reset");
panel.addControl(button);
// Must be done AFTER addControl in order to overwrite the default content
const text1 = new TextBlock();
text1.text = "Reset";
text1.color = "Red";
text1.fontSize = 48;
button.content = text1;

The main functional difference between the TouchHolographicButton and HolographicButton is that the TouchHolographicButton supports near interactions (such as touching the button directly with hand tracking).

HolographicSlate

The HolographicSlate is used to display content. It can be dragged around, rotated, and scaled. With one pointer, you have to use the handles to rotate and scale the slate; with two pointers, you can pinch and twist the title bar to rotate and scale it.

The HolographicSlate hosts an AdvancedDynamicTexture to display content, simply set the content property to a Control or collection of Controls to adjust what is displayed. It also has an adjustable title bar at the top that can display a title by setting the title property.

The dimensions can be manually set at any time, but are also updated when the user adjusts the slate using the handles around the outside of the slate. The dimensions will never go below the minimum dimensions in either direction, but the minimum dimensions can be set separately. If using the slate handles to resize, the aspect ratio will be maintained even when trying to resize smaller than the minimum.

import { Vector2 } from "@babylonjs/core/Maths/math.vector";
import { Image } from "@babylonjs/gui/2D/controls/image";
import { HolographicSlate } from "@babylonjs/gui/3D/controls/holographicSlate";
import { GUI3DManager } from "@babylonjs/gui/3D/gui3DManager";
// Create the 3D UI manager
const manager = new GUI3DManager(scene);
// Let's add a slate
const slate = new HolographicSlate("down");
slate.title = "Checkers";
slate.minDimensions = new Vector2(5, 5);
slate.dimensions = new Vector2(10, 10);
slate.titleBarHeight = 1.5;
manager.addControl(slate);
// Must be done AFTER addControl in order to overwrite the default content
slate.content = new Image("checkers", "./textures/Checker_Albedo.png");

Content inside the slate can also be scrolled in X or Y directions. Use the contentResolution property to manipulate the resolution of the texture.

The slate natively provides two TouchHolographicButtons on the top right: the leftmost enables the FollowBehavior for the slate, and the rightmost destroys the slate.

Near Menu

The NearMenu is a small control that displays buttons close to the user. By default, it follows the user with FollowBehavior. It can be pinned in the world either by using the pin button, or whenever the user drags the backplate.

Below, an example of a horizontal 3-button near menu.

import { NearMenu } from "@babylonjs/gui/3D/controls/nearMenu";
import { TouchHolographicButton } from "@babylonjs/gui/3D/controls/touchHolographicButton";
import { GUI3DManager } from "@babylonjs/gui/3D/gui3DManager";
// Create the 3D UI manager
const manager = new GUI3DManager(scene);
// Let's add a slate
const near = new NearMenu("near");
manager.addControl(near);
const button0 = new TouchHolographicButton("button0");
button0.imageUrl = "./textures/IconFollowMe.png";
button0.text = "Button 0";
near.addButton(button0);
const button1 = new TouchHolographicButton("button1");
button1.imageUrl = "./textures/IconClose.png";
button1.text = "Button 1";
near.addButton(button1);
const button2 = new TouchHolographicButton("button2");
button2.imageUrl = "./textures/IconFollowMe.png";
button2.text = "Button 2";
near.addButton(button2);

As NearMenu is a child class of VolumeBasedPanel, the direction of the layout can be changed by tweaking the parameters rows and columns.

For example, to make a near menu with n buttons vertical, use :

near.rows = n;

Hand Menu

The HandMenu is a NearMenu that uses the HandConstraintBehavior. It is useful for XR experiences to always have a 3D menu in hand range.

By default, the HandMenu positions itself on the outer side of the user's left hand and only activates when the user both has their palm facing them and is looking at their hand. These defaults can be changed by modifying the properties on the HandConstraintBehavior attached to the HandMenu.

Custom controls

You can create your own custom control by inheriting from the Control3D class and implementing the following functions:

• _createNode(): Called on controls to create a transform node or a mesh to represent the control
• _affectMaterial(): Called on controls to prepare and affect a material if a mesh is used to represent the control

Further reading

The Babylon GUI

Learn all about the Babylon.js 2D GUI system.

Scroll Viewer

Learn about Scroll Viewer in Babylon.js.

XML Loader

Learn about the Babylon.js XML Loader.

Selector

Learn about the selector in Babylon.js.
