Fire


Fire Procedural texture

Fire Procedural texture

Using the Fire procedural texture

Fire procedural texture can be found here:

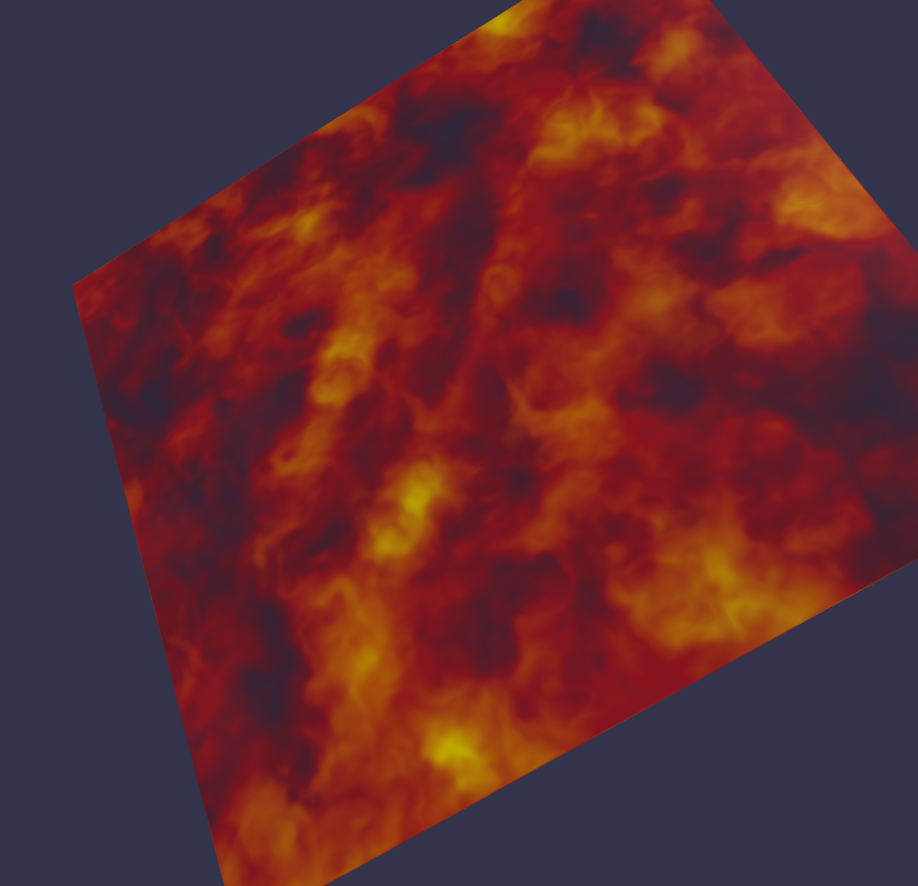

A demo can be found here: http://www.babylonjs-playground.com/#KM3TC -


This texture has 4 parameters :

  • time can be set manually(float) if autoGenerateTime(boolean) is set to false. It is used inside the fire shader to animate it
  • speed controls the speed of the flames (BABYLON.Vector2)
  • shift controls the direction of the flames (BABYLON.Vector2)
  • fireColors is an array of 6 (BABYLON.Color3/4) defining the different color of the fire. You can define them manually of use presets available as static properties of the class (PurpleFireColors, GreenFireColors, RedFireColors, BlueFireColors)
    var fireMaterial = new BABYLON.StandardMaterial("fontainSculptur2", scene);
    var fireTexture = new BABYLON.FireProceduralTexture("fire", 256, scene);
    fireMaterial.diffuseTexture = fireTexture;
    fireMaterial.opacityTexture = fireTexture;
